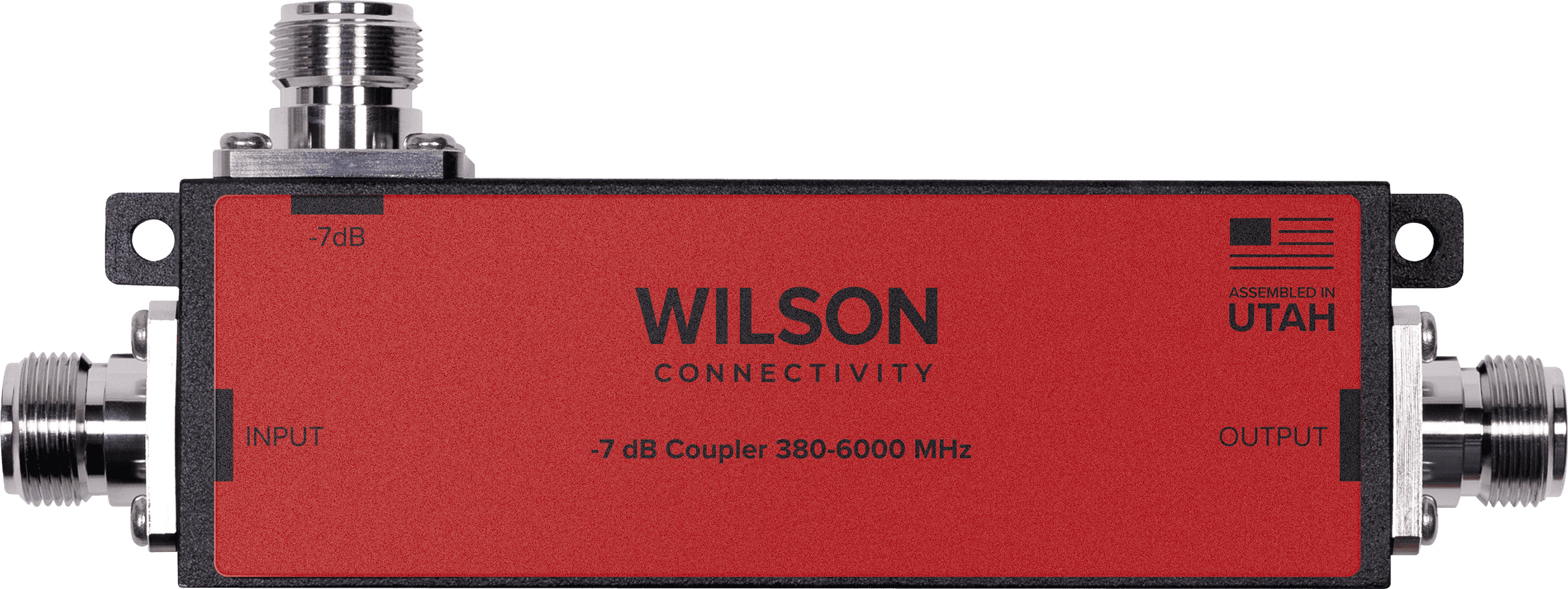

-7dB Directional Coupler 380-6000 MHz
SKU 781004
Description
-7dB Directional Coupler 380-6000 MHz • Wide Frequency Band 380-6000 MHz • Low VSWR • Low Insertion Loss • Indoor & Outdoor Application IP65 • Widely used for In-building Solutions • 1-year warranty
IBWAVE VEX FILESSPEC SHEETSpecification
Model
781004
Frequency Band (MHz)
380-6000
Coupling (dB)
7
Insertion Loss (dB)
≤1.5
Accuracy (dB)
±1.5
Isolation (dB)
575-2700 MHz ≥262700-3800 MHz ≥243800-4800 MHz ≥224800-6000 MHz ≥19
VSWR
≤1.35
PIM(dBc)
≤-150dBc@2*43dBm(698-2700 MHz)
Impedance (Ω)
50
Power(W)
200/Port
Humidity (%)
5-95
Temperature
-22°F - +149°F(-30°C - +65°C)
Application
Indoor or Outdoor IP65
